Wyvern Minuet 224

Wyvern Minuet 224

The new Minuet is designed for the home or for the smaller church. It has a compact console similar to the Sonata and so is ideal for home practice especially if space is limited. Despite its modest size this organ has two full compass 61 note keyboards and a 30 note fully polyphonic, radiating and concave pedalboard.

This organ has a carefully chosen specification of 24 speaking stops the emphasis being on the quality of tone rather than an extensive stop list. In addition to the British specification there are three other alternative specifications: French; German and Dutch. This new version of the Minuet now sports individual departmental pistons as standard. Generals and toe pistons can also be added at additional cost.

The audio system is also impressive; even in standard internal configuration the organ has ten speakers over six audio channels that enable the ranks to be divided.  A "split-semitone" system is also used to give movement to the sound – just one of many inbuilt features that help produce the character of a pipe organ!

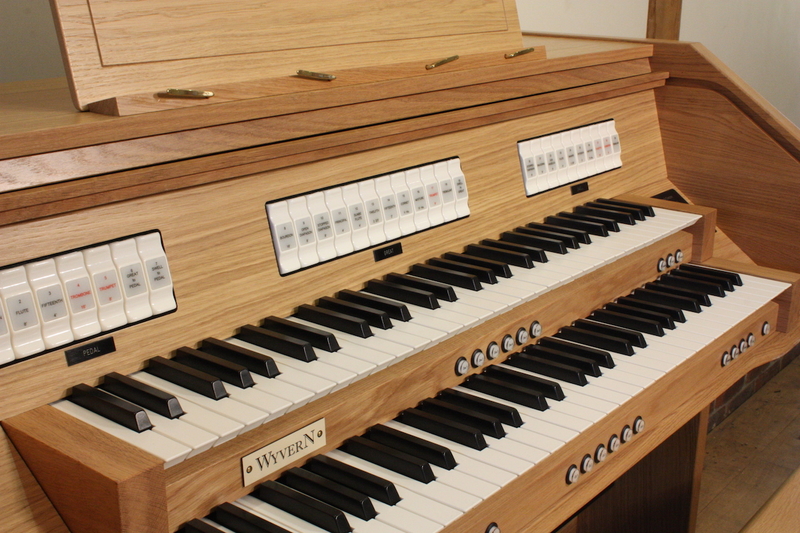

The rugged console has an abundance of solid oak including the locking roll top that gives the organ an air of quality. The expression pedal is a robust construction with wooden shoe.

Gallery

Voice Specification

Pedal

Bourdon
16
Bass Flute
8
Fifteenth
4
Trombone
16
Trumpet
8
i Swell to Pedal
ii Great to Pedal

Great

Bourdon
16
Open Diapason
8
Stopped Diapason
8
Principal
4
Suabe Flute
4
Twelfth
2 2/3
Fifteenth
2
Cornet (1.8.12.15.17)
Vrks
Mixture (19.22.26.29)
IVrks
Trumpet
8
Tremulant
Swell to Great

Swell

Stopped Diapason
8
Salicional
8
Vox Angelica
8
Flute
4
Nasard
2.2/3
Fifteenth
2
Mixture (22.26.29)
IIIrks
Fagotto
16
Cornopean
8
Tremulant

General specification

2 Manuals (CC-c4). 30 note concave and radiating pedalboard. 4 specifications: English; German; French; Dutch. Hauptwerk Console Mode. 4 x 24 stops – 96 stops total. VPP audio control – Console/Front/Church. 6 thumb pistons to Great/Pedal. 6 thumb pistons to Swell. Pedal pistons to Great coupler. 84 Piston Memories. Set Piston. General Cancel Piston. Monobass (range programmable). 54 Historical Temperaments. Voicing and Audio LCD Control Centre. Adjustable Windchest Configurations. Light or Dark Oak as Standard – other finishes at extra cost. Oak Slat Locking Roll-Top. 1 expression pedal with oak shoe. Bench with music storage. Transposer (-5+4 semitones). Fine Pitch adjustment (409-472 Hz). Convolution Reverberation. Divisional Volume/Balance adjustment. Overall Organ Volume control. Volume Surround Speakers. Reverberation Programmes and Level. Surround Reverberation Level. Tremulant adjust Depth/Speed. 2.2.2 Audio System. 6 x 30W Digital Amplifiers. 6 Speakers. Integrated 3D surround system. MIDI In/Out/Thru. Line IN/OUT Sockets. Headphone Socket.

Dimensions

Width: 1280mm Height: 1150mm Depth: 585mm Depth inc. pedalboard: 885mm Total weight: 133kgs
